Description
KATOOL--PREFESSIONAL GARAGE EQUIPMENTS |
||||||||||||||||||||||||||||||||||||||
|
Max wheel diameter:
|
47" / 1200 mm |
Max wheel width:
|
16" / 406 mm
|
Wheel clamp:
|
12"-30"
|
Power supply:
|
220V / 1PH / 60HZ
|
Gear Box Motor power :
|
1.5KW / 2HP
|
Hydraulic power :
|
1.1KW / 1.5HP
|
Rotation speed:
|
6.8r/min
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
Net weight :
|
188KG / 414 lbs
|
- All hydraulic power system to work on all car wheels
- Built-in top assist arm allow you to change even difficult run flat and low- profile wheels
- Leverless design. Stainless steel mounting head and included plastic cover for protect rim
- Assist wheel lift device
- High quality motor with pure copper winding, low defect rate and longer life
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- High quality filter

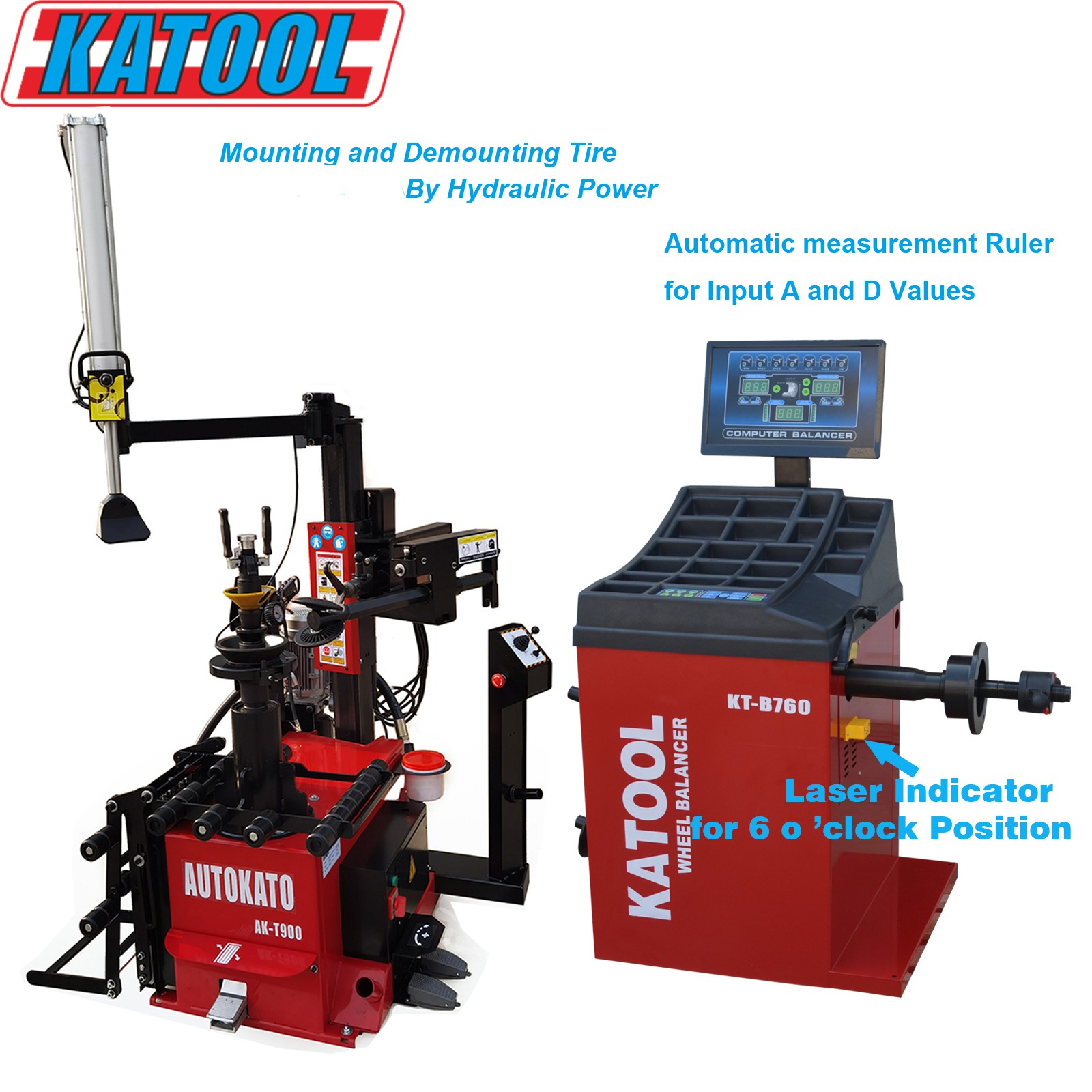

Car Wheel Balancer KT-B760:
Rim Diameter:
|
<30"
|
Wheel Width:
|
3"-12"
|
Wheel Diameter:
|
<880mm
|
Balancing Speed:
|
180rpm
|
Power Supply:
|
110V 1PH
|
Motor Power:
|
0.25KW
|
Rim Center Hole Dia.:
|
<135mm
|
Wheel Weight:
|
<65KG
|
Balancing Accuracy:
|
±1g
|
Measuring Time:
|
7S
|
-Automatic measurement ruler for auto input A and D values.
-The body use 3mm thickness steel, high strength, solid welding, few vibration.
-All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision.
-Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
-The φ36mm shaft thread is by quenching treatment, high strength.
-Top level motor and pure copper winding, fast heat dissipation,low defect rate and longer using life.
-The computer board adopt advanced welding technology, moistureproof,dustproof and anti-static electricity, more longer life.
-Various balance mode, according different rim for different balance mode,make the balance effect more precision.
-Built-in fault diagnosis and self calibration program that double side calibration,No memory parameters,operation more easy.
-Unit selection(Ounce/Gram, MM/Inch).
-High quality integration power board, working stable and reliable.
-Wheel guard for optional.
-Longer shaft for more width wheels
