Description

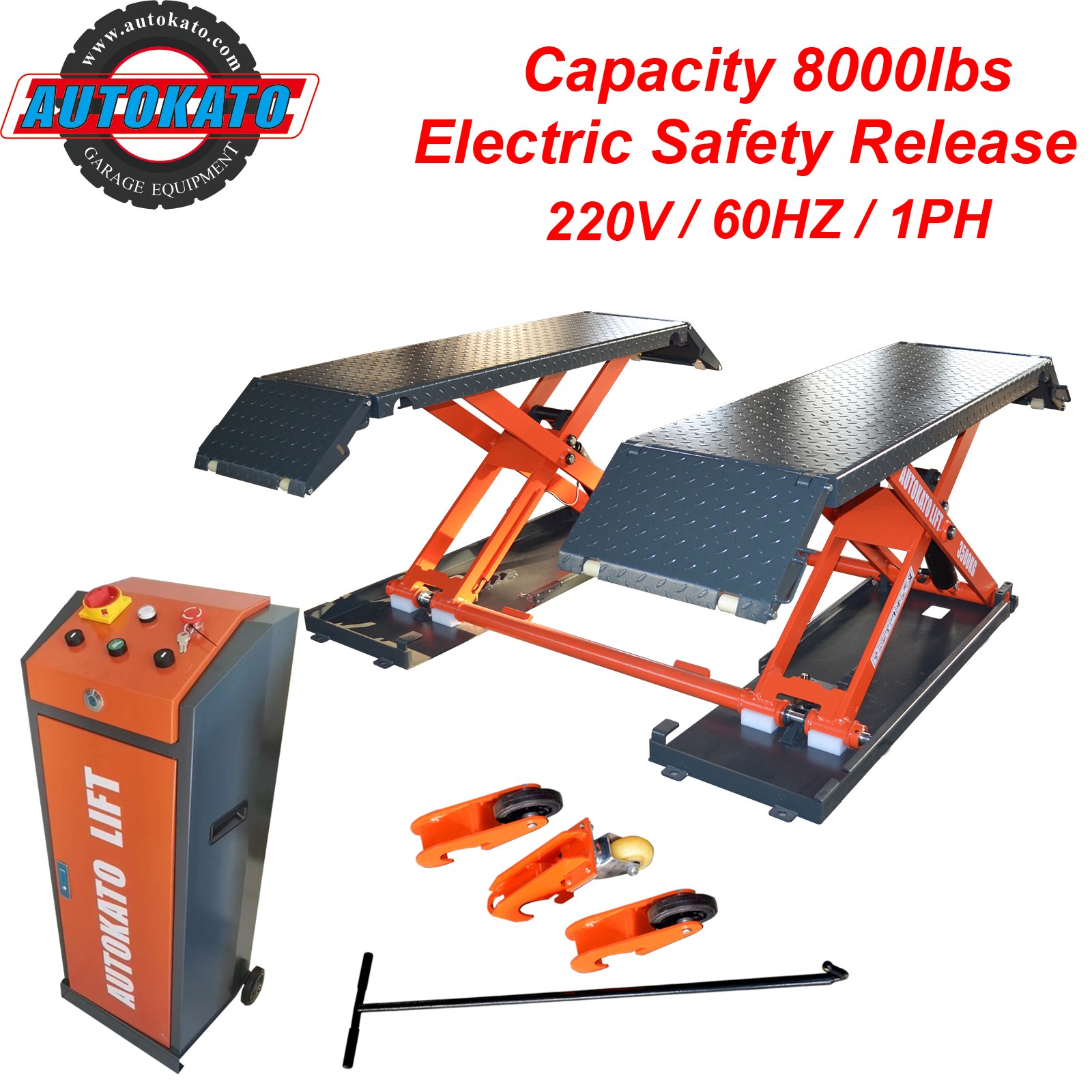

Type: AK-X85 Electric Scissors Lift
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design
- Starting-up system design

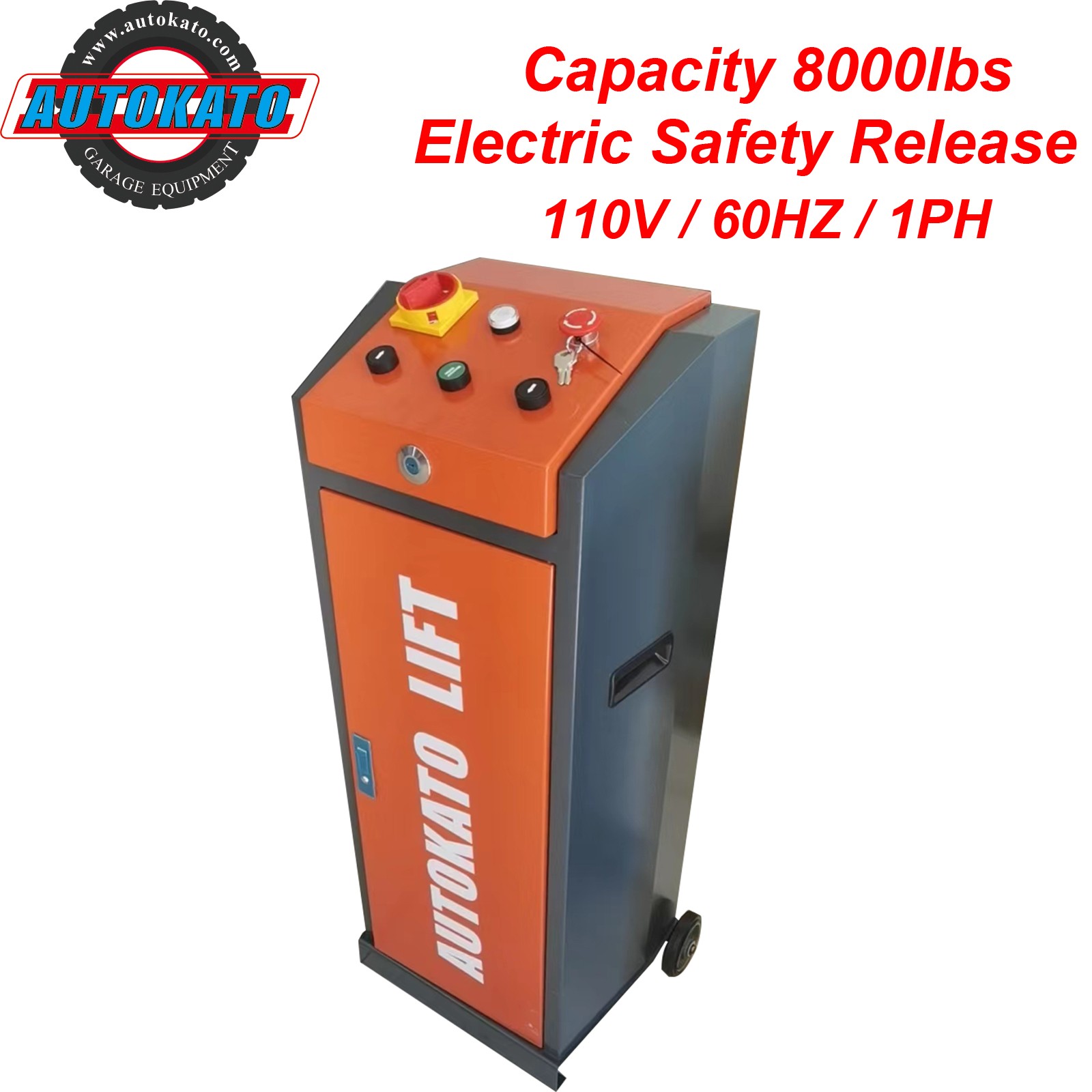

- Electric safety release
- 24V safe control system
- Height limit switch
- Comes with self-lubricated bushing and bearing
- Drive up ramps lock design as platform extension for long vehicles
- Portable, mobile kit included to make the lift moves in your garage easily
- Top level hydraulic system and aluminum motor with fan on top to avoid overheating caused by long time working with 110 (220V)V/ 60HZ/ 1PH

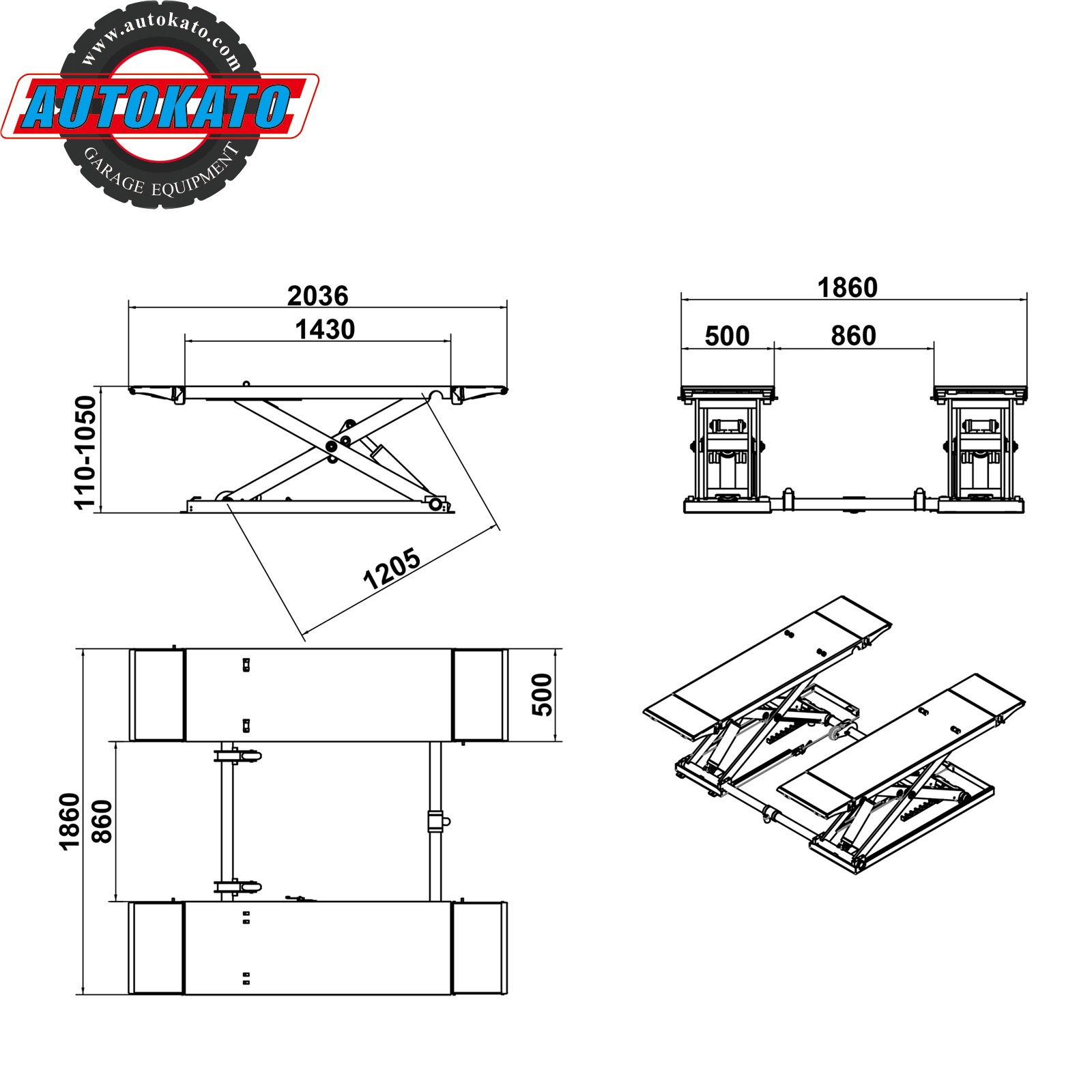

Lifting Capacity | 8000lbs.(3500KG) |
Max. Lifting Height | 40.15"/1020mm |
Min. Height | 4.25"/110mm |
Platform Length | 57"/1450mm |
Length Overall | 83.5"/2120mm |
Platform Width | 20.5"/520mm |
Width Overall | 76.75"/1950mm |
Motor | 110 (220)VAC/60HZ/1PH |
Net Weight | 1213lbs/550KG |
